THE INSPECTOR ROBOT
The world´s toughest data gathering robot.
Robotized inspection and maintenance.
With the power of precision sensors, the Inspector excels in data collection with unparalleled versatility and objectivity, often surpassing human operators. It captures ultra-high-definition photos and videos, records sounds, identifies gas leaks through thermography, and surveys its surroundings with a 3D LIDAR scanner.
Ground robots are now a reality in the energy industry.
Ground robots are already a reality in the energy sector. They can navigate difficult terrain, operate in hazardous environments, collect data and lower emissions of operations. With advances in technology, the use of ground robots is expected to increase in the coming years.
credits: Equinor
SAFETY ABOVE ALL
Industry best practice hazard and risk analysis performed with clients and certification bodies.
INTEGRATION IN SOFTWARE SYSTEMS
Taurob’s flexible API connects directly to a client’s digital twin or seamlessly integrates 3rd party software.

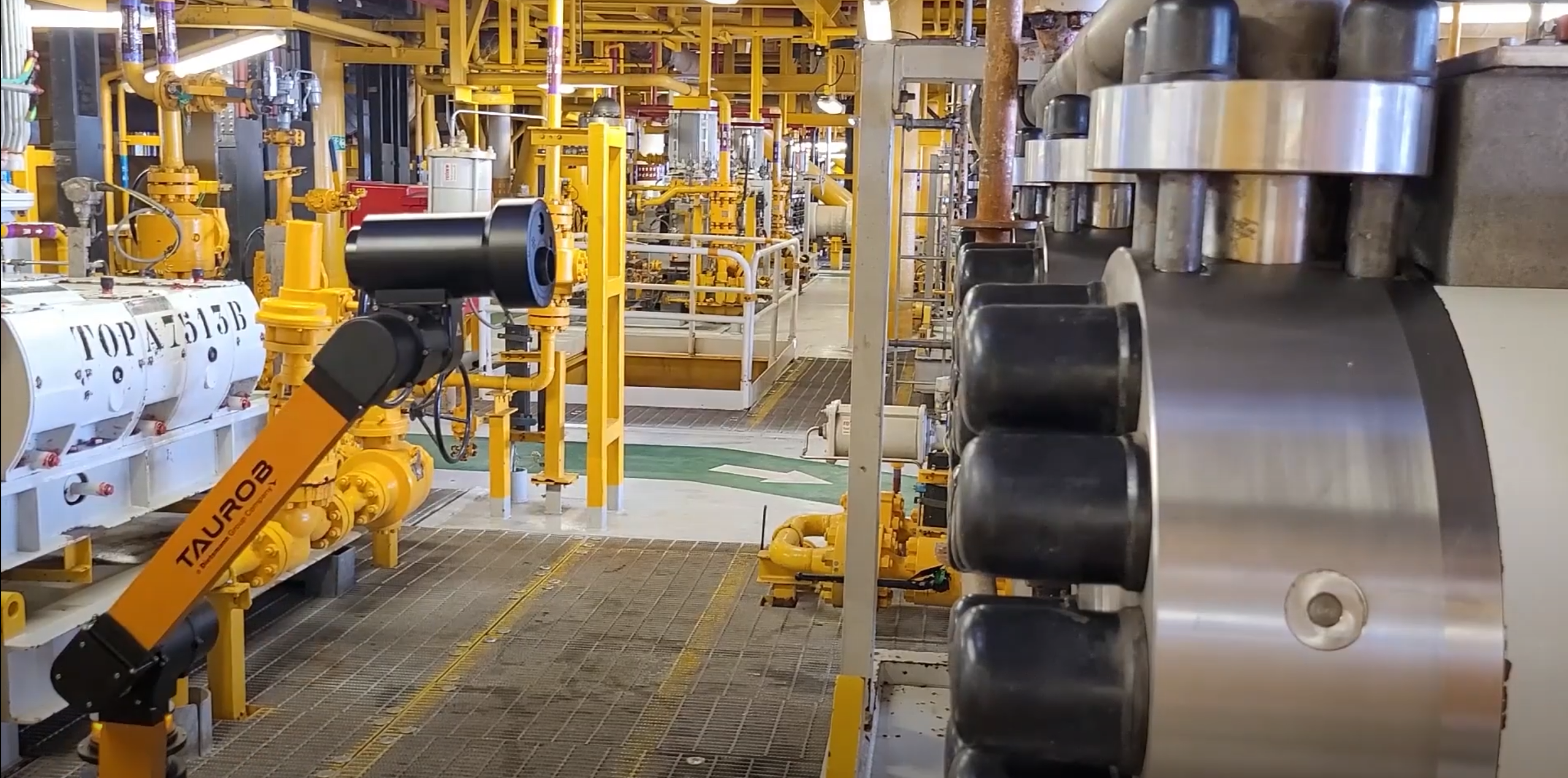

HUMAN-LIKE PERSPECTIVE
Thanks to its four joint long arm, the robot possesses a unique advantage – being able to inspect Points Of Interests that were designed for a human perspective.
HIGH MISSION ENDURANCE
The Inspector performs missions of up to 2,5 uninterrupted hours and recharges in only 80 minutes to its full capacity.
TACKLING MULTIPLE FLOORS
The Inspector climbs and descends stairs of up to 45° inclination in order to perform missions on multiple levels.
HIGH RELIABILITY AND AVAILABILITY
We are committed to designing, developing and long-term testing in order to achieve maximum availability in the field.
FOR EXPLOSIVE ENVIRONMENT
The robot is intrinsically safe and fulfils requirements to function in the harshest environments.
INSPECTION AND MAINTENANCE EXPERTISE
Industry best practice hazard and risk analysis performed with clients and certification bodies.

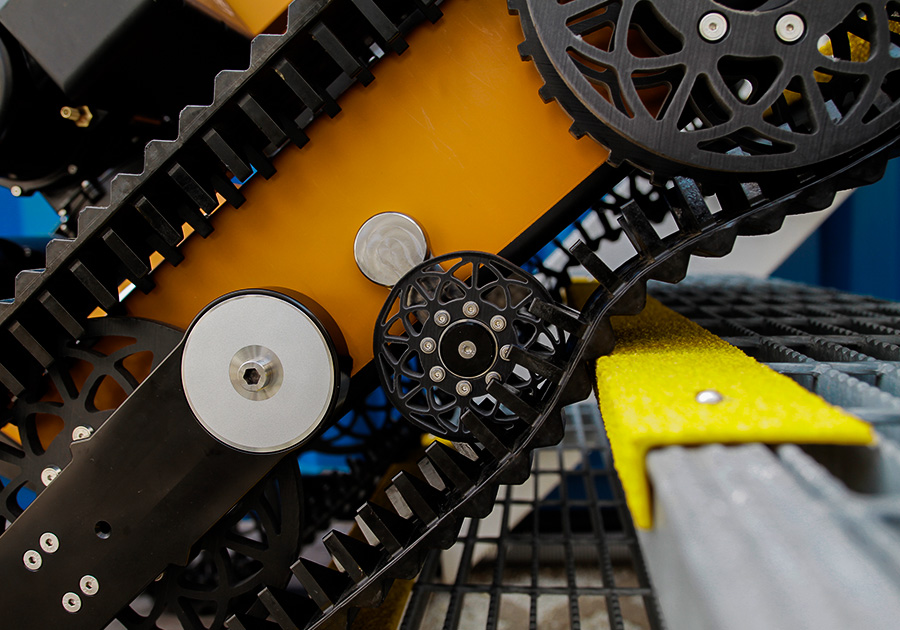

Climbing industrial stairs up to 45°
Long mission endurance and fast charging
High human perspective thanks to its long arm
High and low temperatures from -20C° to +60C°
Integration in software systems
Human-like perspective
Fast charging in ATEX zone
High mission endurance
Advanced tracks
Inspection and maintenance expertise
For explosive environment
Tackling multiple floors
ATEX and ICEx certified
+60°/-20° C operational temperatures

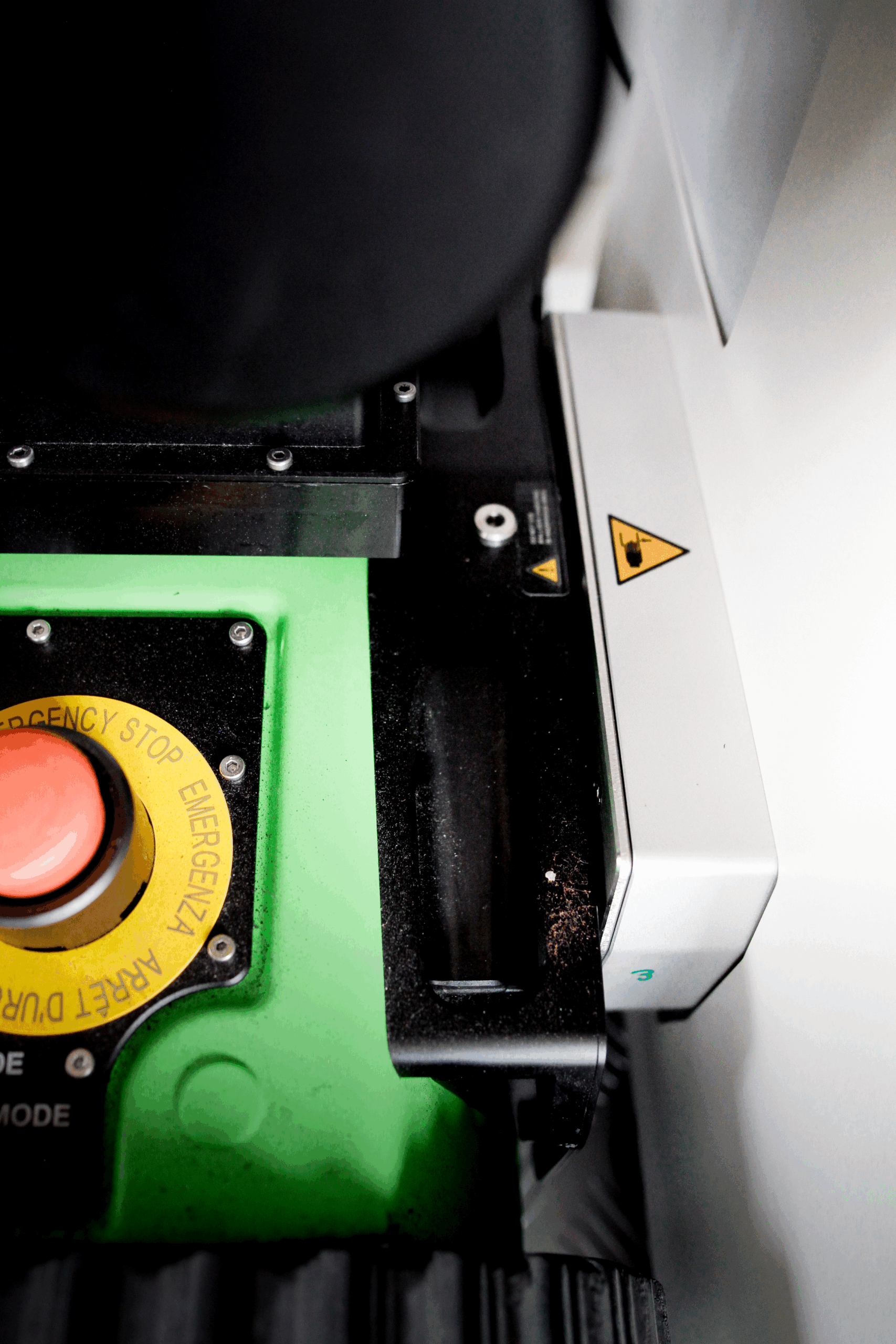

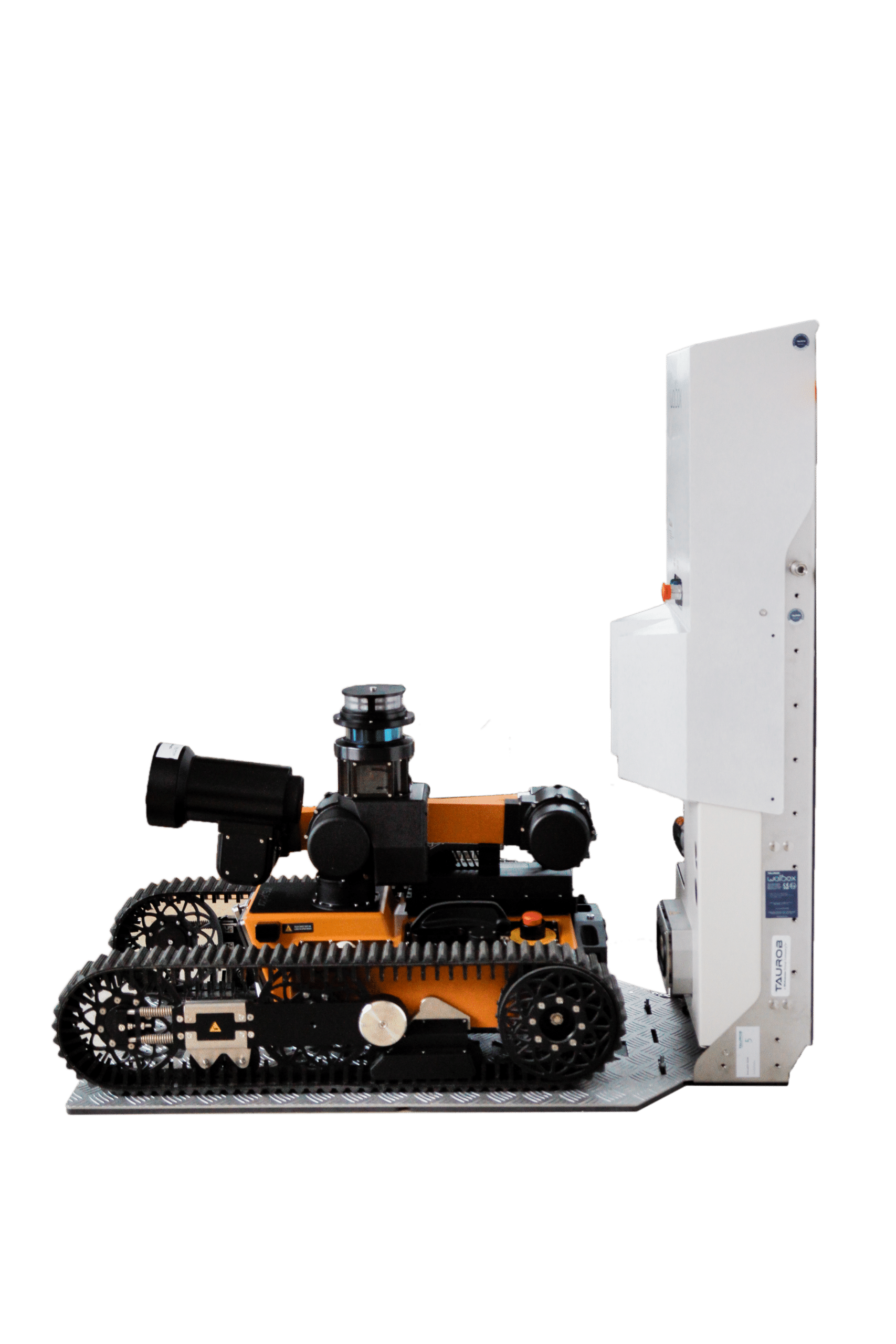

ATEX CERTIFIED DOCKING
Automatic battery charging and pressurization in ATEX Zone.

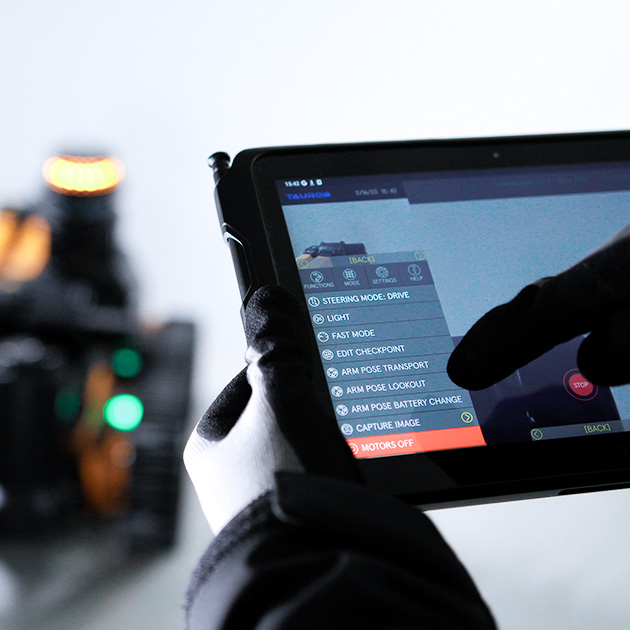

EasyDrive and EasyMission
Remote mission settings via app over WiFi, LTE or 4G connection.

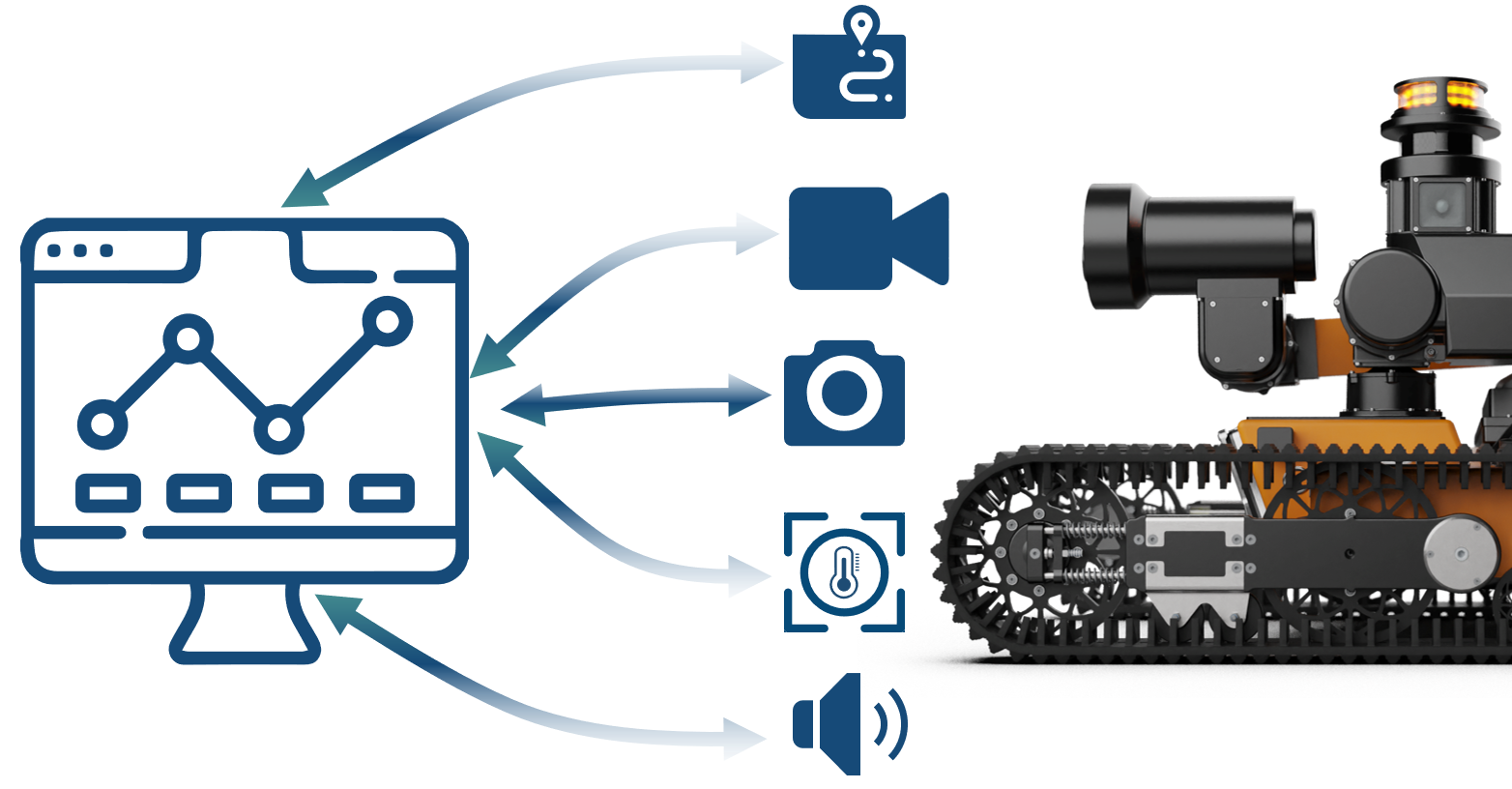

Third party software integration
Easily connects and interacts with specialized software.

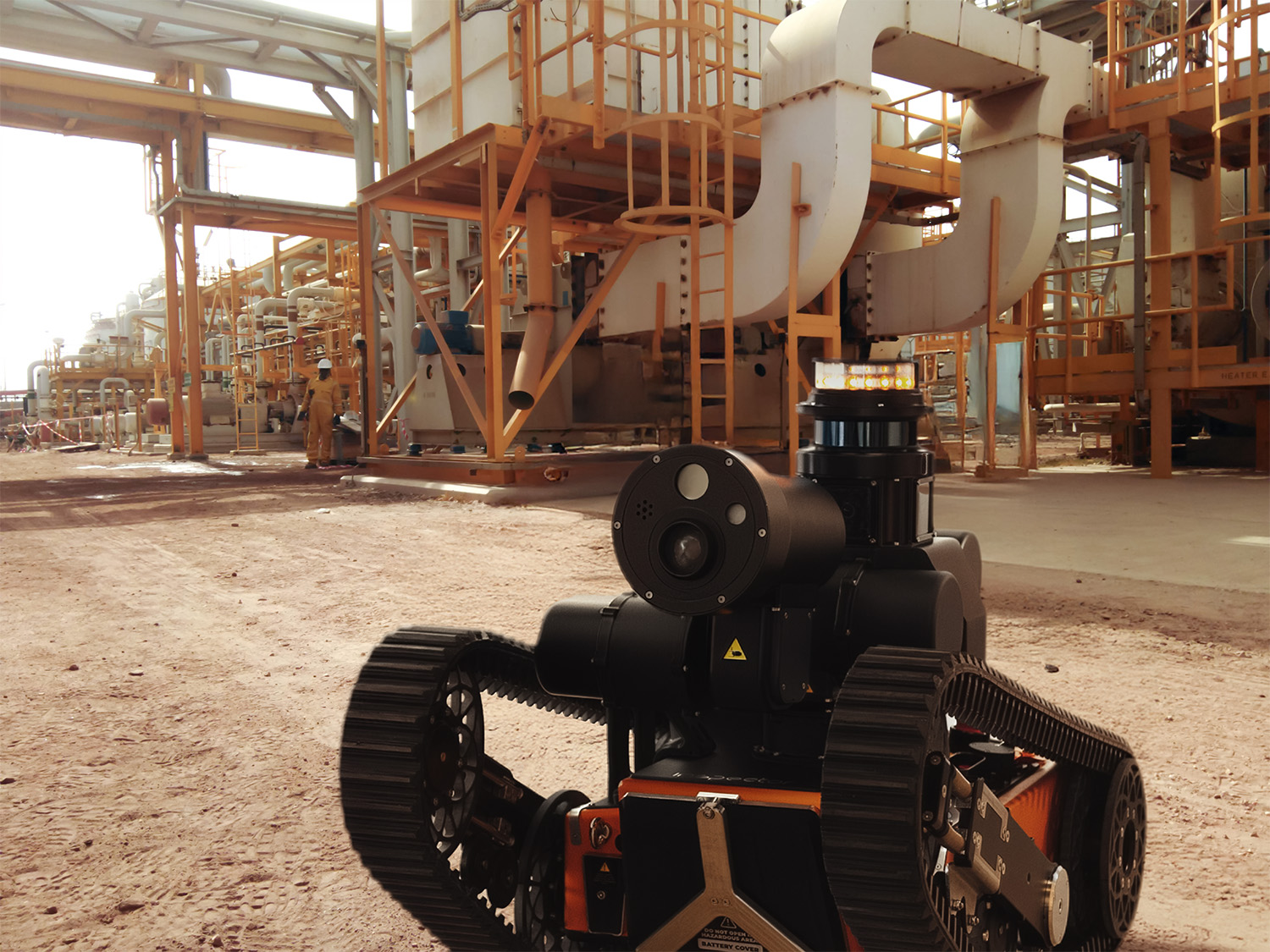

Everywhere. Every condition.
Built for the extreme, the Inspector serves dutifully in harsh industrial environments, explosive atmospheres, adverse weather conditions and all sorts of terrain.
image credits: TotalEnergies
Application in many industries.
Oil&Gas
Power Generation
Chemical
Mining
Survellance & Security
Emergency Response
Beyond any obstacle.
■ Autonomous drive mode
■ Stair climbing up to 45°
■ Obstacle recognition and avoidance system
■ Gaps, steps and uneven surfaces overcoming
■ Movable long arm for versatile point of views
■ Patented caterpillar tracks for absolute safe driving
Automated analytics.
The Inspector´s software is able to interpret data in real-time using cloud or on-premise servers to optimize missions and goals. Its flexible API connects directly to a client’s digital twin or seamlessly integrates 3rd party analytics tools.
Combined knowledge in collaboration with:

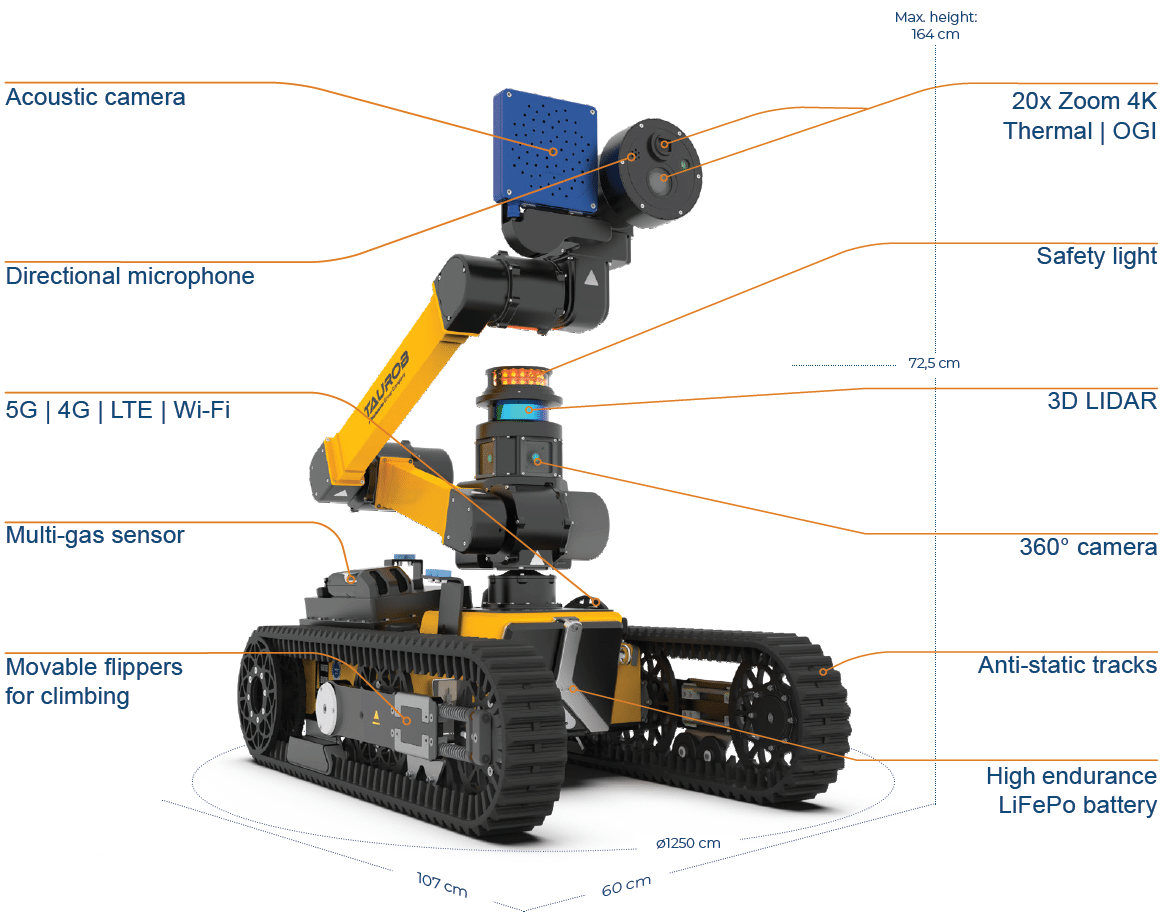

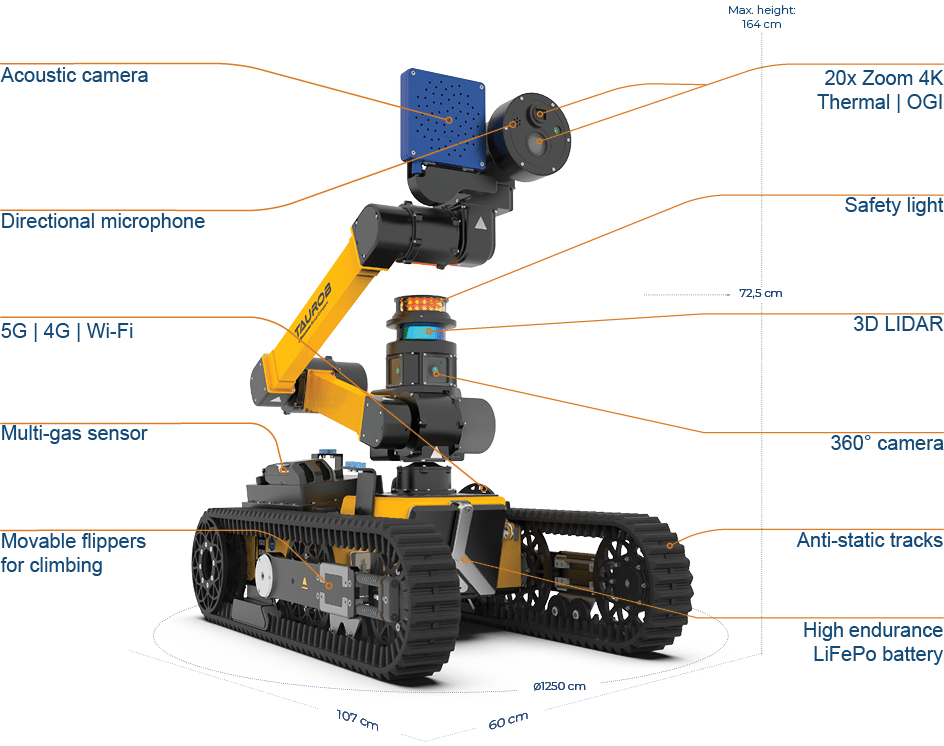

Specifications.
| General | |
| Dimensions | 1000 x 594×766 mm |
| Weight | 80,0 kg (long arm) |
| Speed | 0,45 m/sec |
| Sensors | |
| Camera | 4x 2K for 360º view 1x 4K in arm |
| Navigation | 3D LIDAR |
| Audio | Microphone |
| Optional | Gas finding camera Zoom camera Thermal camera |
| Safety | |
| ATEX | Zone 1 |
| Monitoring | SIL2, PL-D Onboard Safety Controller |
| Battery | |
| Running | 150 min. |
| Charging | 20-80% in 45 min. 100% in 80 min. (Charging in ATEX Zone 1 ) |
| Environment | |
| Climate | -20º C to +60º C IP67 |
| Surface | Grated Floors Concrete, Grass Gravel, Sand Ramps Stairs (up to 45º) |
| Arm | |
| Joints | 4 DOF |
| Length | 1640 mm height |
| Requirements | |
| Connection | 4G or WiFi |
| Power | 100 – 240 VAC 50/60 Hz max 6 A |
| Purging gas | Nitrogen |
| Autonomous inspection |
| Mapping and Teach-in of POIs |
| Data Gathering Missions |
| Anomaly Detection |
| Obstacle Detection |
| Level Change / Stair Climbing |
| Data acquisition |
| 4K Photos |
| 4K Videos |
| Audio Clips |
| Thermography |
| Point Clouds |
| Gas Sensor Data |
| Data processing |
| In Cloud or on Edge (local server) |
| API for Client System integration |
| 3rd party apps: Dial Gauges, etc. |
| 360º Videos |
| Street-view |
Specs subject to change.
Get the Inspector.
■ Level 1 maintenance
■ Gas detection
■ Site surveying
■ Corrosion detection
■ Dial-gauge reading
■ Valve positions
■ Fill level reading
■ Pump noise analysis
■ Fan belt sound analysis
■ Emergency response
